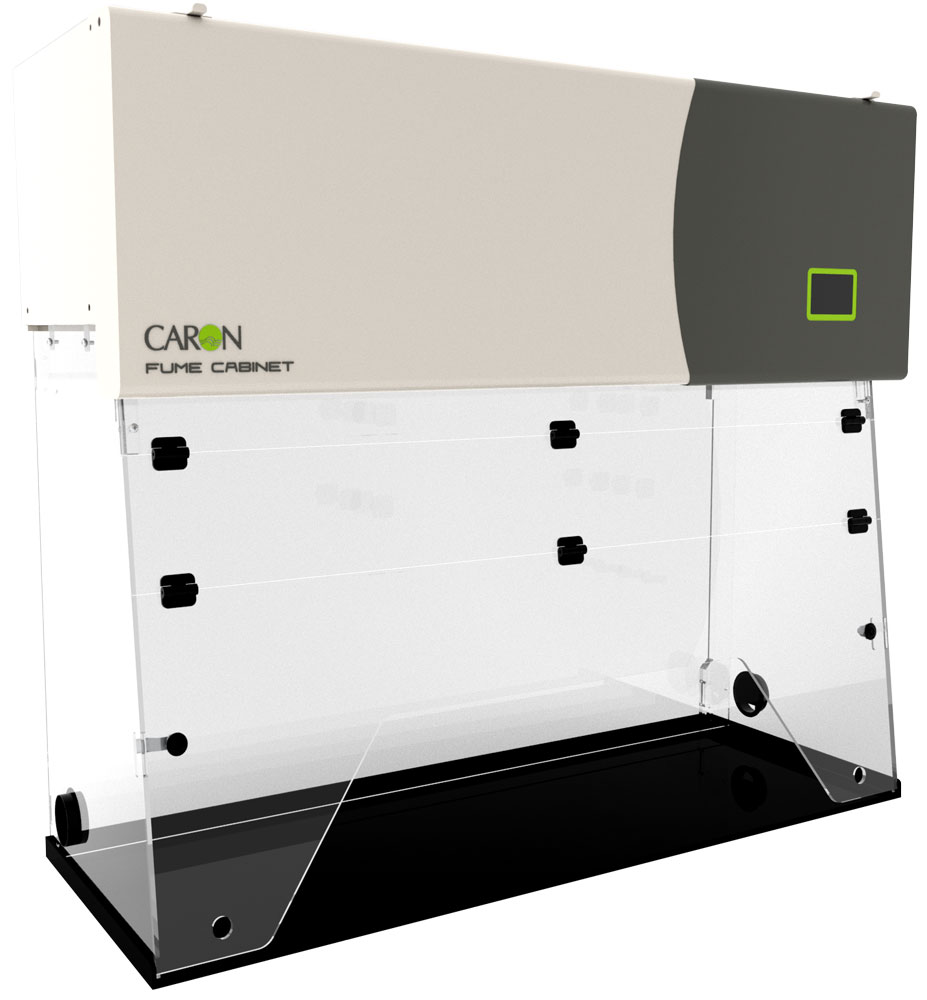

Ductless Fume 1500mm - Single & Dual layer Chemcap Carbon

Experience the best in solvent protection with Caron's ductless fume cabinets, where safety meets visibility.

Key features

Up to three layers of protection through either general-purpose or solvent-specific organic carbon media
Clearview acrylic construction for visibility and comfort
Significantly lower long-term cost of ownership compared to traditional ducted systems.

Contact for consultation

Ductless Fume 1500mm - Single & Dual layer Chemcap Carbon

Or call Hotline: 024 6666 2685. To be consulted directly!

PRODUCT INTRODUCTION
Specifications
Application
Order information
Customer reviews

PRODUCT INTRODUCTION

Engineered for unparalleled solvent protection, these cabinets provide up to three layers of defense, customizable with general-purpose or solvent-specific organic carbon media. Crafted with Clearview acrylic, they ensure a brightly lit, strain-free working area devoid of dark corners and shadows. Not only do they prioritize your protection and ease of use, but they're also designed with your budget in mind—offering significantly lower long-term costs than traditional ducted systems. Experience safety, visibility, and savings with Caron.

Specifications

MODEL	BC 0402	BC 0603	BC 0804	BC 1004	BC 1206	BC 1506	PC 0804	PC 1004
PRE-FILTER	Oiled pre-filter media eliminates particles >5µm to ISO 16890
MAIN- FILTER (2)	See Filter Selection
MAIN FILTER (3)	Optional
OPENING TYPE	Flap	Teardrop or Trapezium			Trapezium		Teardrop or Trapezium
VOLUME OF AIR	92m³/hr	130m³/hr
FACE VELOCITY	>0.5m/s
FAN TYPE	EBM R3G190-RG15-44 50/60Hz dynamically balanced centrifugal (115V)				EBM R3G190-RG15 44 50/60Hz dynamically balanced centrifugal, x2 (115V)		EBM R3G190-RG15-44 50/60Hz dynamically balanced centrifugal (115V)
FAN TYPE	EBM R3G190-RC05-03 50Hz-dynamically balanced centrifugal (230V)				EBM R3G190-RC05 03 50 Hz dynamically balanced centrifugal, x2 (230V)		EBM R3G190-RC05-03 50Hz-dynamically balanced centrifugal (230V)
FAN CONTROL	Automatic, Programmable Nextion TFT Fan & Alarm Control System
AIRFLOW ALARM	Nextion TFT Fan & Alarm Control System
LIGHTING	Integrated LED Lighting (optional)				Integrated LED Lighting		Integrated LED Lighting (optional)
SOUND LEVEL	< 50dBA at 1 meter
FINISH EXT	Light Grey, Gloss Finish, Plastic Coating
COMPLIANCE STANDARDS	BS7989:2001 Specification For Recirculatory Filtration Fume Cupboards
	AFNOR NFX 15-211 Class 1 For Filter Retention Capacity
	AFNOR NFX 15-203 For Containment
	Bs EN 61010:2010 Safety Requirements for Electrical Equipment For Measurement, Control And Laboratory Use
	BS EN 61326:2013 Electrical Equipment for Measurement, Control And Laboratory Use. EMC Requirements.
	Carbon Filter: BS7989:2001, HEPA Filter: EN1822:2009

Application

This instrument provides a ductless fume containment solution for safe handling of solvents and volatile chemicals, supporting applications that require multi-layer filtration protection and clear, well-lit visibility without the need for traditional ducted exhaust systems.
